變壓吸附制氮（Vacuum Desorption PSA Oxygen Plant）
概論：
我公司生產的PSAN制氮設備是在吸取國內外眾多生產廠家成功經驗的基礎上，采用國際先進的工藝流程和技術，利用本公司雄厚的技術優勢，經多年的研究、試驗、完善后推出的國內先進的空氣分離設備。
具有投資少；操作簡單、自動化程度高、運行可靠、維修保養周期長、運行費用低；單位能耗低；使用壽命長等優點。針對不同應用領域，可實現不同純度指標，并已實現系列化。
Overview
Our PSAN nitrogen plant is the most advanced air separation plants through years of research, tests and perfection in China. Taking solid technology advantages of our company, the plant adopts the latest process and technology in the world and is developed on basis of successful experiences of many suppliers both inside and outside China.
It has the characteristics of less investment, simple operation, high automation level, reliable operation, long maintenance and overhaul cycle and low operation cost, low unit power consumption and long service life etc. Aiming on different application field, we can provide different purity index in series.
工藝流程簡介：
原料空氣經壓縮機增壓后，壓縮空氣進入空氣緩沖罐以減緩氣流的脈動，然后進入除油過濾器，把水珠、油霧除去。干凈壓縮空氣進入吸附器，空氣中的O2、H2O、CO2以及碳氫化合物被吸附劑吸附，同時獲得氮氣，吸附塔飽和后，自動切換，該吸附器減壓至大氣壓力再生。本設備設置2個吸附器交替使用，以連續獲得產品氮氣。設置氮氣儲罐以穩定供氣系統氣壓的穩定。
PSA Nitrogen Plant
PROCESS DESCRIPTION
The feed air, after being compressed by the compressor, will enter into
the buffer tank to reduce the stream fluctuation, then passes through
the filter to remove the moisture and oil mist. The dry and clean compressed
air goes into the adsorber, oxygen, moisture and carbon dioxide and other
hydrocarbons in the air will be adsorbed, nitrogen is obtained at the
same time. The system will change over automatically after the adsorbent
is saturated. Then this adsorber will be depressurized to the atmospheric
pressure for regeneration. There are two adsorbers working alternatively
to obtain product nitrogen continuously. A nitrogen storage tank is provided
to stabilize the supply pressure.

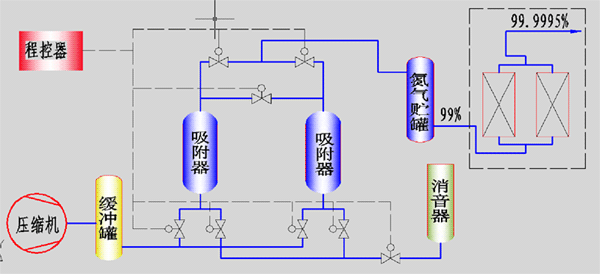

工藝流程示意圖(PROCESS FLOW SHEET：)
| 型號 |
氮氣純度 |
氮氣輸出壓力 N2 Output Pressure |
氮氣產量 Nm3/h N2 Output |
耗氣量 Nm3/h Air Capacity Consumed |
裝機功率 Km Power |
| PSAN-150 | 98% | 0.7MPa | 150 | 360 | 38.58 |
| PSAN-300 | 300 | 750 | 77.57 | ||
| PSAN-500 | 500 | 1248 | 114.4 | ||
| PSAN-600 | 600 | 1446 | 165.78 | ||
| PSAN-800 | 800 | 2004 | 206.51 | ||
| PSAN-1000 | 1000 | 2502 | 258.62 | ||
| PSAN-1500 | 1500 | 3750 | 373.6 | ||
| PSAN-2000 | 2000 | 4998 | 520.8 | ||
| PSAN-2500 | 2500 | 6246 | 571.5 | ||
| PSAN-3000 | 3000 | 7500 | 672 |
| 型號 |
氮氣純度 |
氮氣輸出壓力 N2 Output Pressure |
氮氣產量 Nm3/h N2 Output |
耗氣量 Nm3/h Air Capacity Consumed |
裝機功率 Km Power |
| PSAN-150 | 99% | 0.7MPa | 150 | 423 | 38.58 |
| PSAN-300 | 300 | 846 | 78.1 | ||
| PSAN-500 | 500 | 1410 | 137.78 | ||
| PSAN-800 | 800 | 2256 | 258.62 | ||
| PSAN-1000 | 1000 | 2820 | 326.6 | ||
| PSAN-1500 | 1500 | 4230 | 420.8 | ||
| PSAN-2000 | 2000 | 5640 | 521.5 | ||
| PSAN-2500 | 2500 | 7050 | 672 | ||
| PSAN-3000 | 3000 | 8460 | 836 |
| 型號 |
氮氣純度 |
氮氣輸出壓力 N2 Output Pressure |
氮氣產量 Nm3/h N2 Output |
耗氣量 Nm3/h Air Capacity Consumed |
裝機功率 Km Power |
| PSAN-150 | 99.9% | 0.7MPa | 150 | 468 | 46.94 |
| PSAN-300 | 300 | 930 | 93.1 | ||
| PSAN-500 | 500 | 1560 | 165.78 | ||
| PSAN-800 | 800 | 2496 | 258.62 | ||
| PSAN-1000 | 1000 | 3120 | 326.6 | ||
| PSAN-1500 | 1500 | 4680 | 420.8 | ||
| PSAN-2000 | 2000 | 6276 | 621.5 | ||
| PSAN-2500 | 2500 | 7800 | 786 | ||
| PSAN-3000 | 3000 | 9300 | 936 |
通用條件：
電力：低壓電源：3相
冷卻水：溫度≤32℃
安裝場地：室內非防爆地區，環境溫度5～35℃
Utilities:
Power: LT power supply: 3-phase
Cooling Water: Temperature ≤32℃
Installation Area: Non Explosion-proof Area
特點：
設備簡單，造價低；
自動化程度高，操作簡單；
動力少、節能、制氮成本低；
運動件、易損件少，安全可靠，維修少；
啟動時間短，氣量穩定，停、用方便；
占地面積少、無污染；
操作范圍廣，變工況容易。
Features:
Simple Equipment, low cost
High automation level, easy operation
Less power consumption, energy saving & low cost of nitrogen product
Less movable parts and easily-damaged parts, safe, reliable and less maintenance
Short start-up time, steady flow, convenient shut-down & operation
Less area taken, free of pollution
Wide operation scope, easy load variation
